Are you trying to decide whether tcpdump or Wireshark is the tool you need for network analysis or troubleshooting tasks?
They’re both good at capturing and analyzing network traffic, identifying potential security threats, and troubleshooting connectivity issues. However, they serve different purposes and excel in different scenarios. But which one is right for your situation?
This article will dive into tcpdump vs Wireshark, exploring what they are, how they’re used, their unique features, strengths, and use cases. By the end, you'll clearly understand which tool is right for your needs.
Ready for answers on the Wireshark vs tcpdump debate? Let's get started.
What Are tcpdump and Wireshark?
In the following section, let’s briefly discuss tcpdump and Wireshark. These tools, included with Kali Linux, are used for similar purposes: capturing and inspecting data packets from a network.
What is tcpdump?
tcpdump is a command-line packet analyzer that lets you capture and display packets transmitted over a network.
tcpdump was created in the late 1980s by Van Jacobson, Craig Leres, and Steven McCanne at the Lawrence Berkeley National Laboratory. It’s an open-source tool for Unix-based operating systems such as Linux, FreeBSD, OpenBSD, and macOS and can also be used on Windows through ports like WinDump.
Primary functions:
- Capturing network packets transmitted over a network interface.
- Applying filters to capture specific traffic using Berkeley Packet Filter (BPF) syntax.
- Capturing packets to display in the terminal, save to a file for later analysis, or pipe into other tools.
- Diagnosing network issues, monitoring traffic, and verifying security policies.
What Is Wireshark?
Wireshark is a GUI-based packet analyzer. It provides a more user-friendly interface for capturing and analyzing network traffic.
Gerald Combs initially released Wireshark in 1998. It’s an open-source tool that can be installed on Windows, macOS, and Linux.
Primary functions:
- Capturing and analyzing network traffic, providing a detailed view of the packet data.
- Supporting deep inspection of hundreds of network protocols, making it highly versatile.
- Applying display filters to focus on analyzing network packets or traffic patterns.
- Visualizing graphs and statistics to help interpret network data through inbuilt tools.
- Navigating through captured data and performing a detailed analysis.
What Are tcpdump and Wireshark For?
Next, let's discuss the function and purpose of Wireshark and tcpdump.
What tcpdump Is For
tcpdump is used to capture network packets. A packet is a small piece of data sent over a network. tcpdump captures and displays these packets from a network interface, allowing you to see the transmitted data.
Tcpdump works via a command-line interface (CLI), meaning you interact with it by typing commands into a terminal. The CLI allows for more powerful and flexible usage, particularly if you’re comfortable using the terminal.
It's also lightweight, making it suitable for environments with limited resources or where a GUI isn't practical.
One of tcpdump's key features is its ability to filter packets. Using the Berkeley Packet Filter syntax, you can apply filters to capture specific types of traffic, such as packets from a particular IP address or those using a specific protocol.
What Wireshark Is For
Wireshark is known for its graphical user interface (GUI), which makes it accessible if you prefer visual tools over working in the terminal. With GUI, you can start and stop packet captures, apply filters, and analyze data through a point-and-click interface.
Wireshark works well at showing you detailed packet analysis. It can dissect and display information about each packet, breaking it into layers from the OSI model and showing header and payload information.
It also provides a feature called "Follow Stream," which is extremely useful for tracking the conversation between two endpoints.
For example, you can follow a TCP stream to see all the packets exchanged in a single TCP connection, making understanding the data's context easier.
How Are tcpdump and Wireshark Used?
Now that you’ve learned about these tools and what they’re for, let’s examine their uses more deeply.
How tcpdump Is Used
Let’s look at some basic syntax and advanced filtering using tcpdump commands. These include:

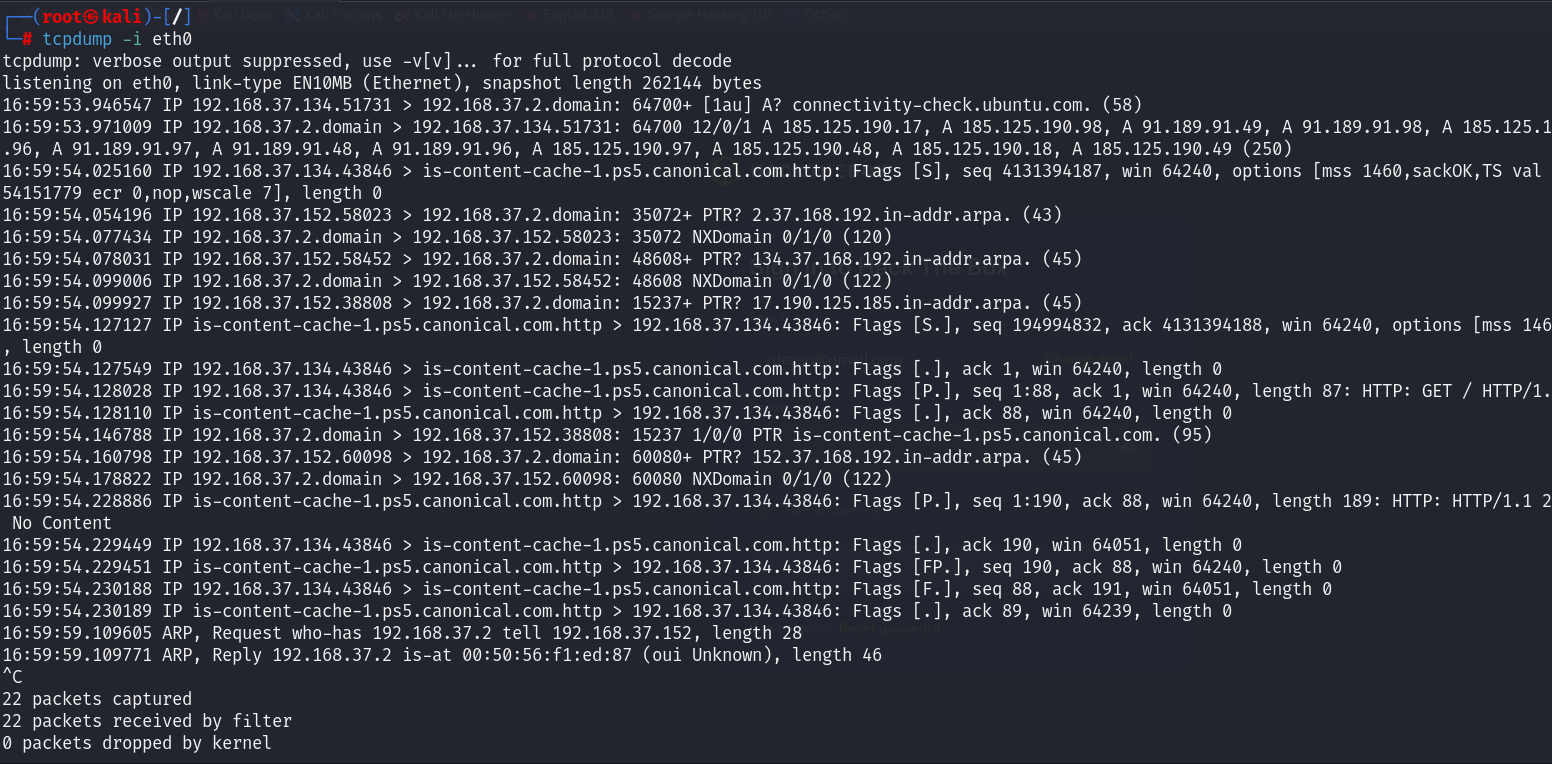

- Capturing packets on a specific network interface (e.g., eth0):
tcpdump -i eth0

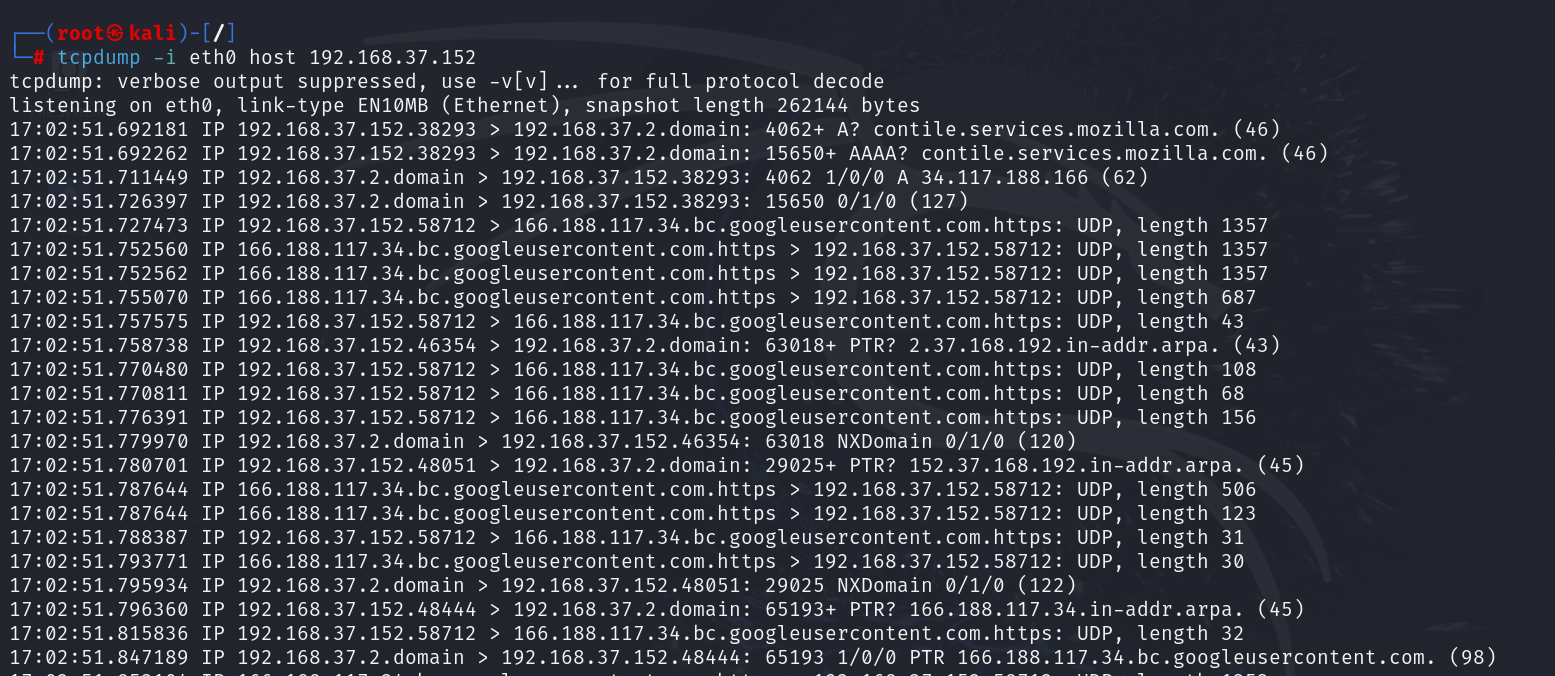

- Capturing only packets on a specific interface to or from a particular IP address (e.g., 192.168.37.152):
tcpdump -i eth0 host 192.168.37.152

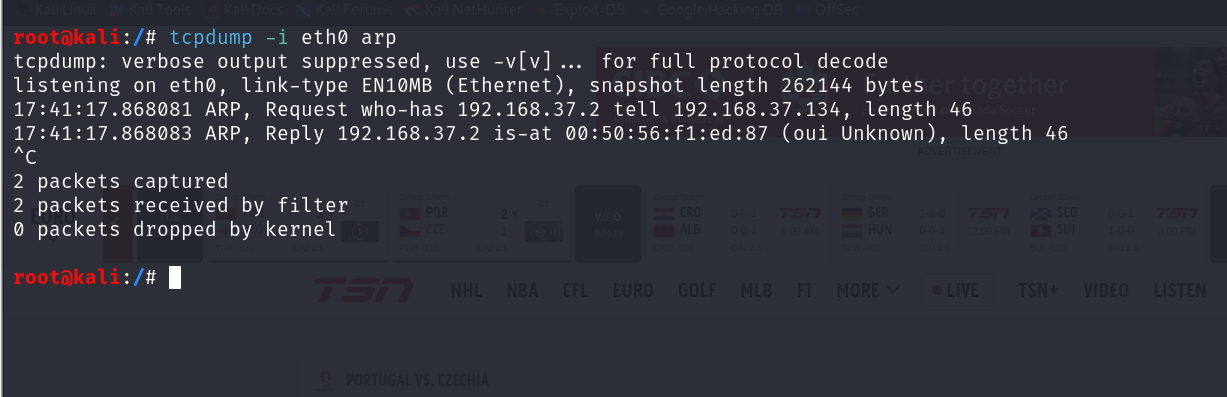

- Capturing only packets from eth0 filtered by the ARP protocol:
tcpdump -i eth0 arp

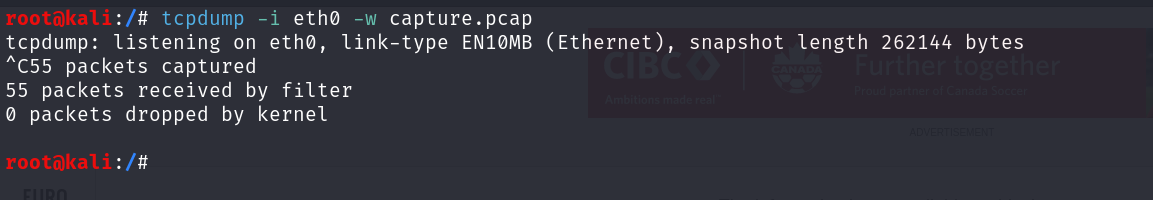

- Saving captured packets to a file:
tcpdump -i eth0 -w capture.cap

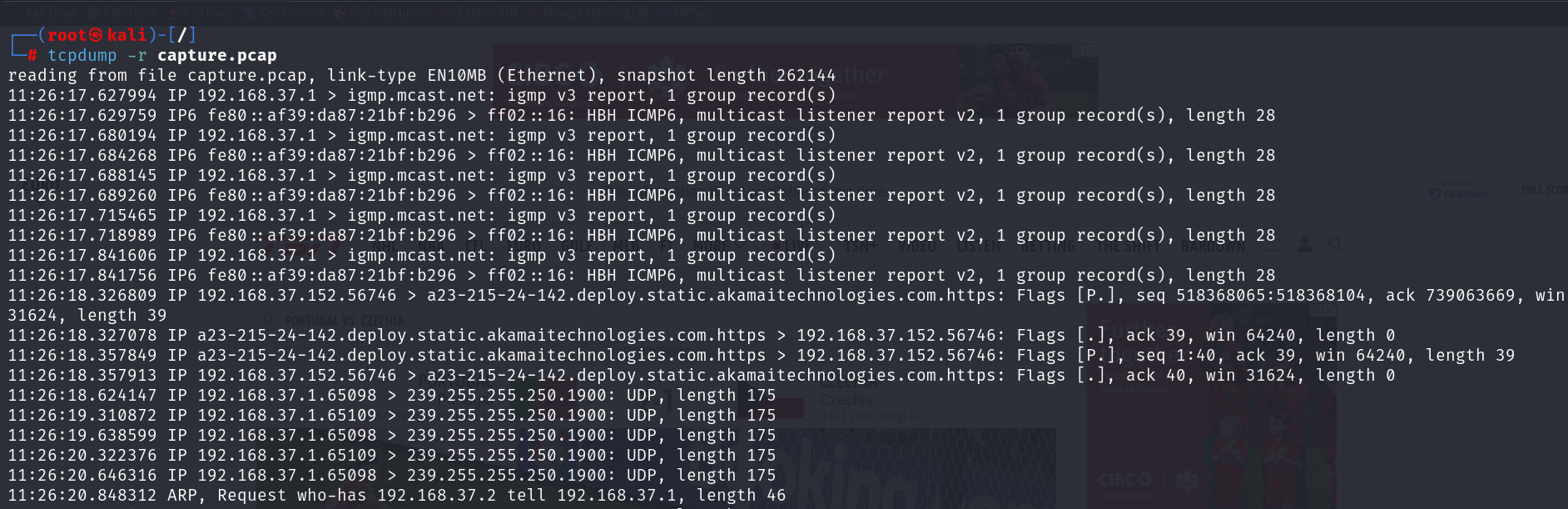

- Reading from a saved file:
tcpdump -r capture.cap

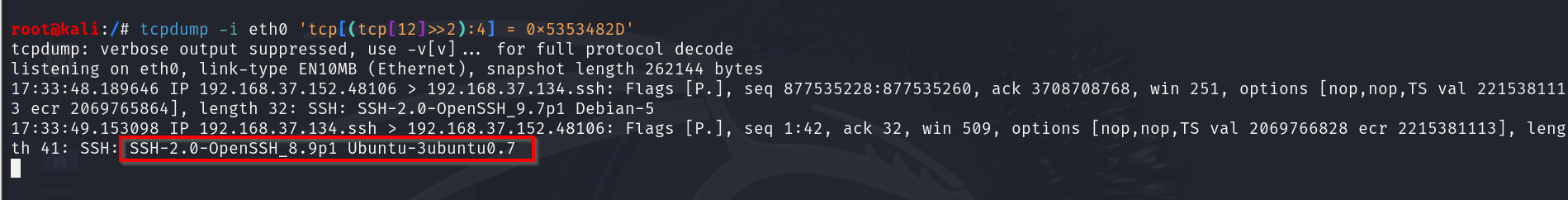

- Capturing TCP packets on the eth0 interface, where the first four bytes of the TCP payload match the ASCII string SSH—this will look for the reply given by the SSH server:
tcpdump -i eth0 'tcp[(tcp[12]>>2):4] = 0x5353482D'
If you want to see more filters and commands that can be run with tcpdump, see The Ultimate tcpdump Cheat Sheet.
How Wireshark Is Used
Next, we’ll show you examples of using Wireshark to start and stop a capture, filter, and analyze packet details.

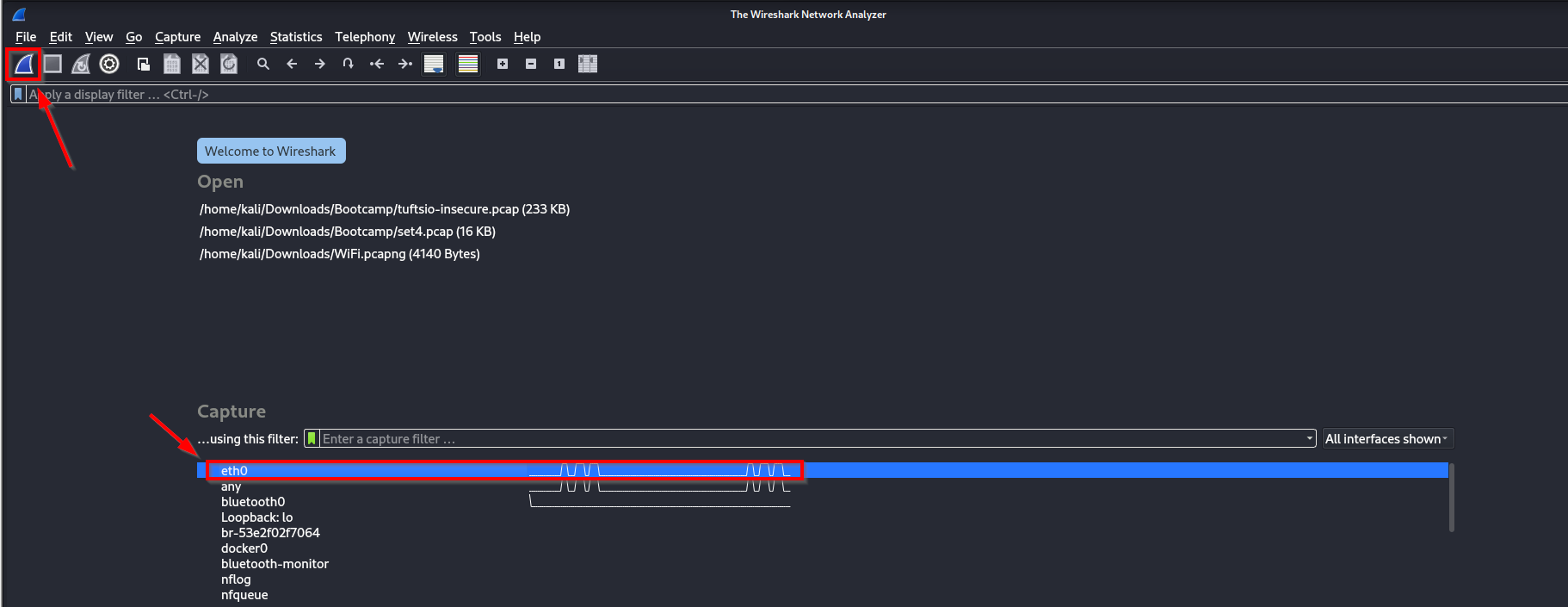

To start a capture, select the interface you want to capture packets on and double-click on it or click the "Start capturing packets" button.

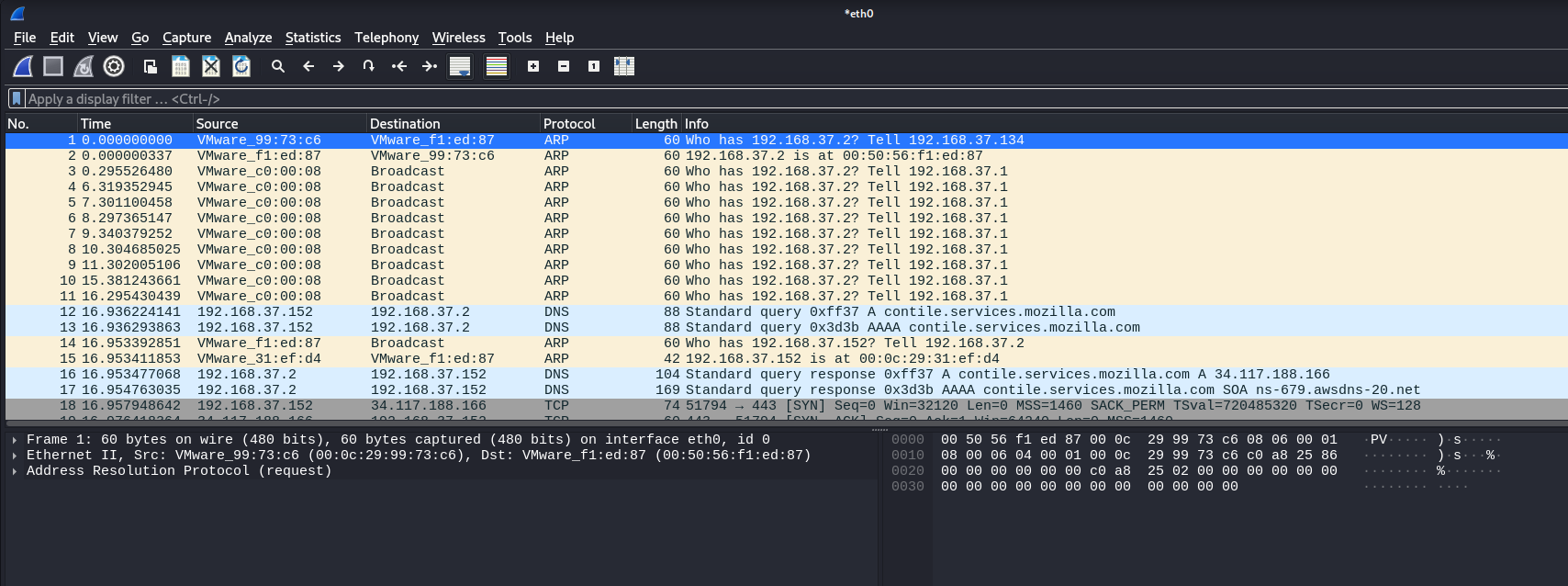

Wireshark will begin capturing packets.

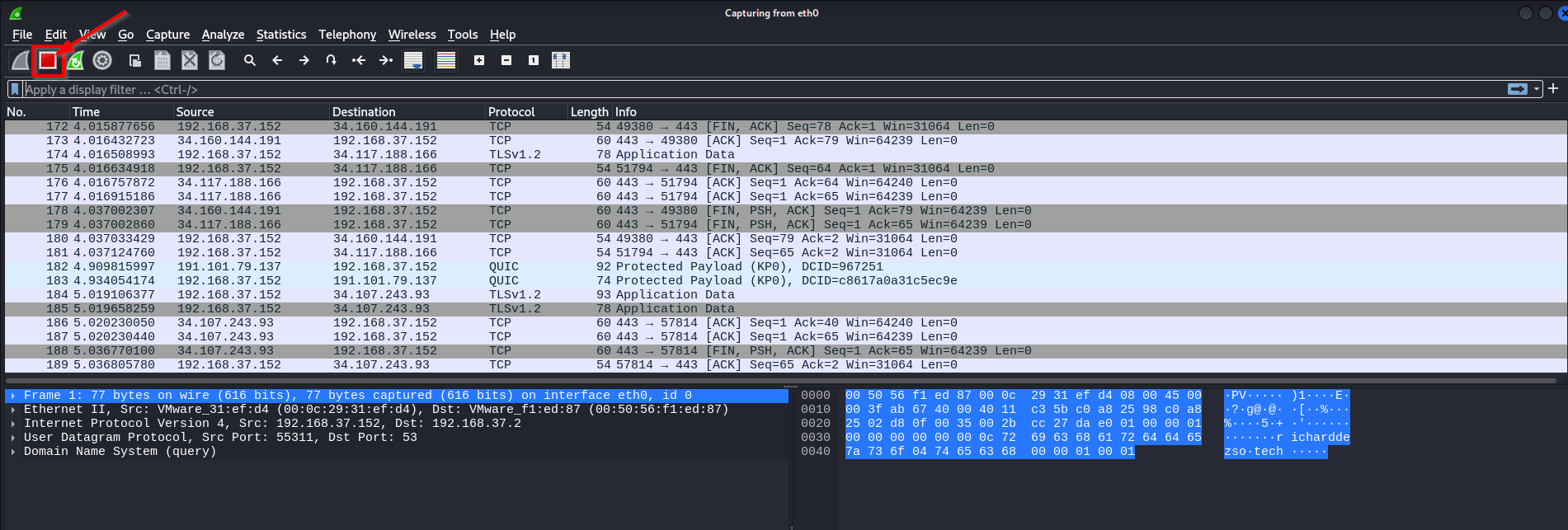

When ready to stop the capture, select the “Stop capturing packets” presented as a red square.
For a great explanation of capturing network traffic using Wireshark, refer to our article How to Use Wireshark to Capture Network Traffic.

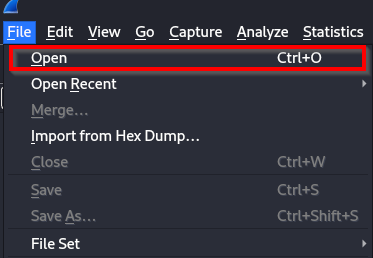

If you want to open a previously saved PCAP file from Wireshark or tcpdump, select "File" and then "Open," or use the shortcut Ctrl+O.

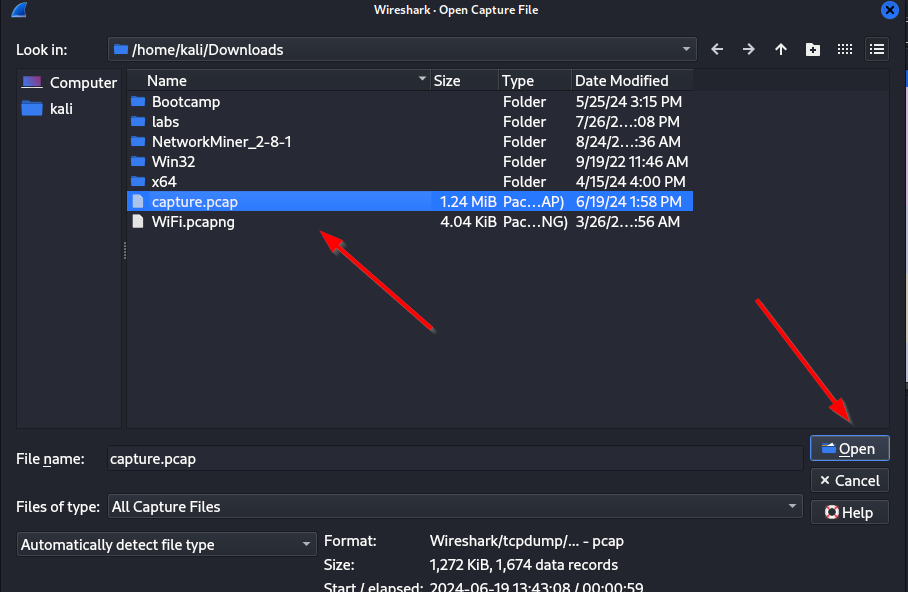

Then, select the file you’d like to open.
To filter packets in Wireshark, use the “Apply a display filter” area to specify the criteria for the packets you want to see. If you want to filter out ARP, ICMP, and STP protocols to reduce chatter, use the following:
!(arp or icmp or stp)

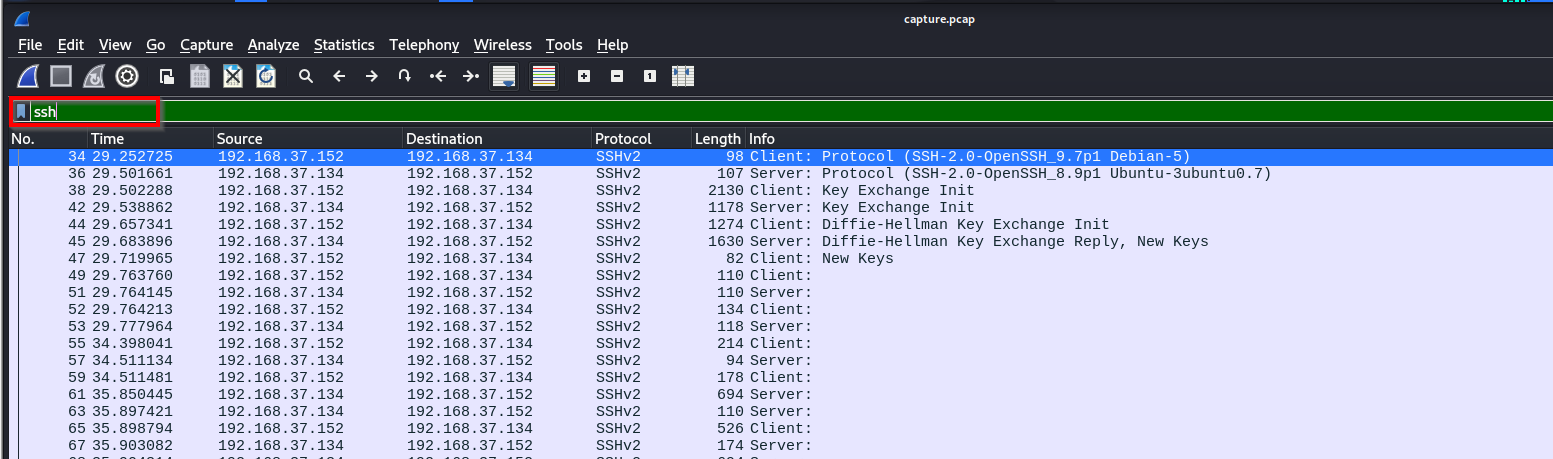

If you only want to see SSH packets, you can use the following filter:
ssh
For more Wireshark filters, see Wireshark Cheat Sheet: All the Commands, Filters & Syntax.

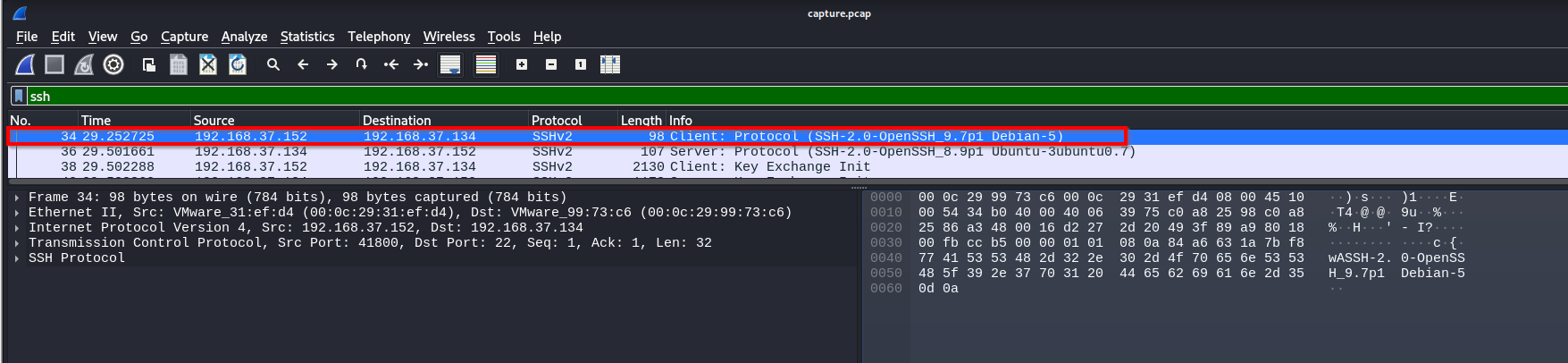

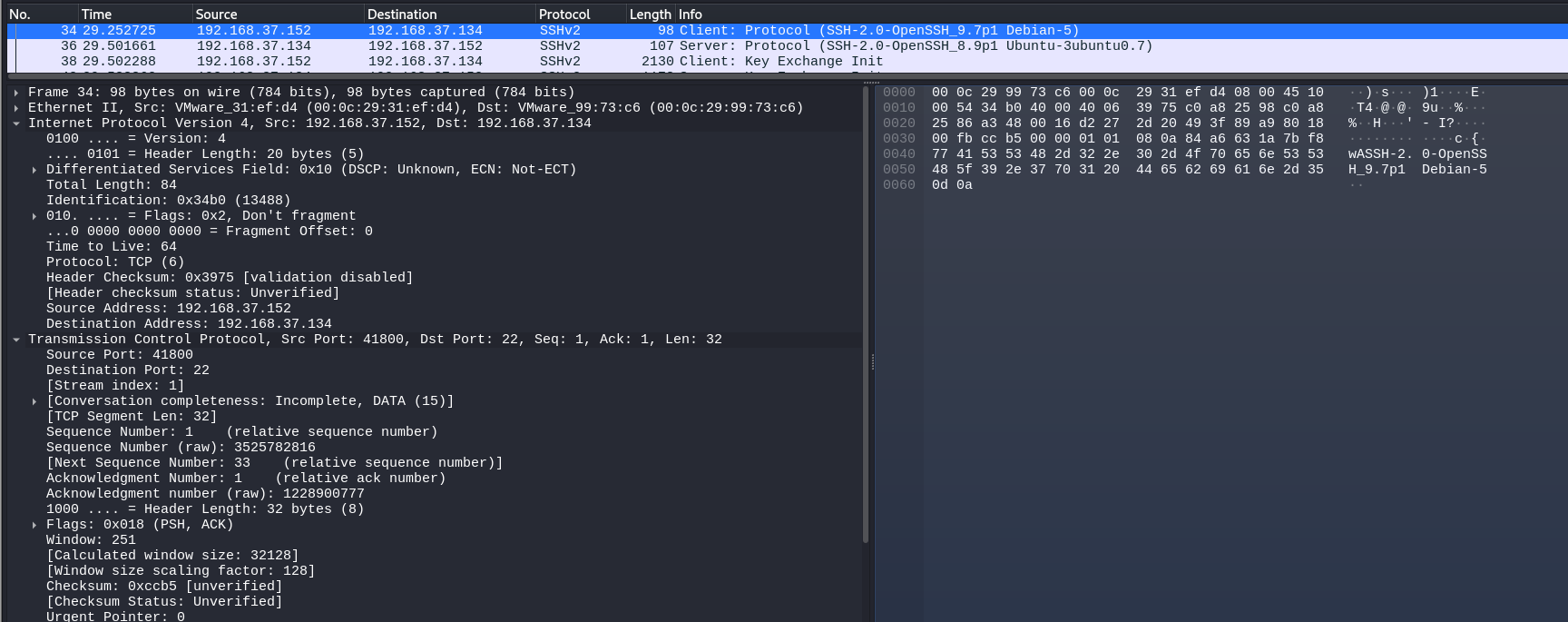

You can also analyze packets in more detail by selecting a packet from the packet pane window.
The packet provides detailed breakdowns of each protocol layer, including Ethernet, IP, TCP/UDP, and application-layer protocols.

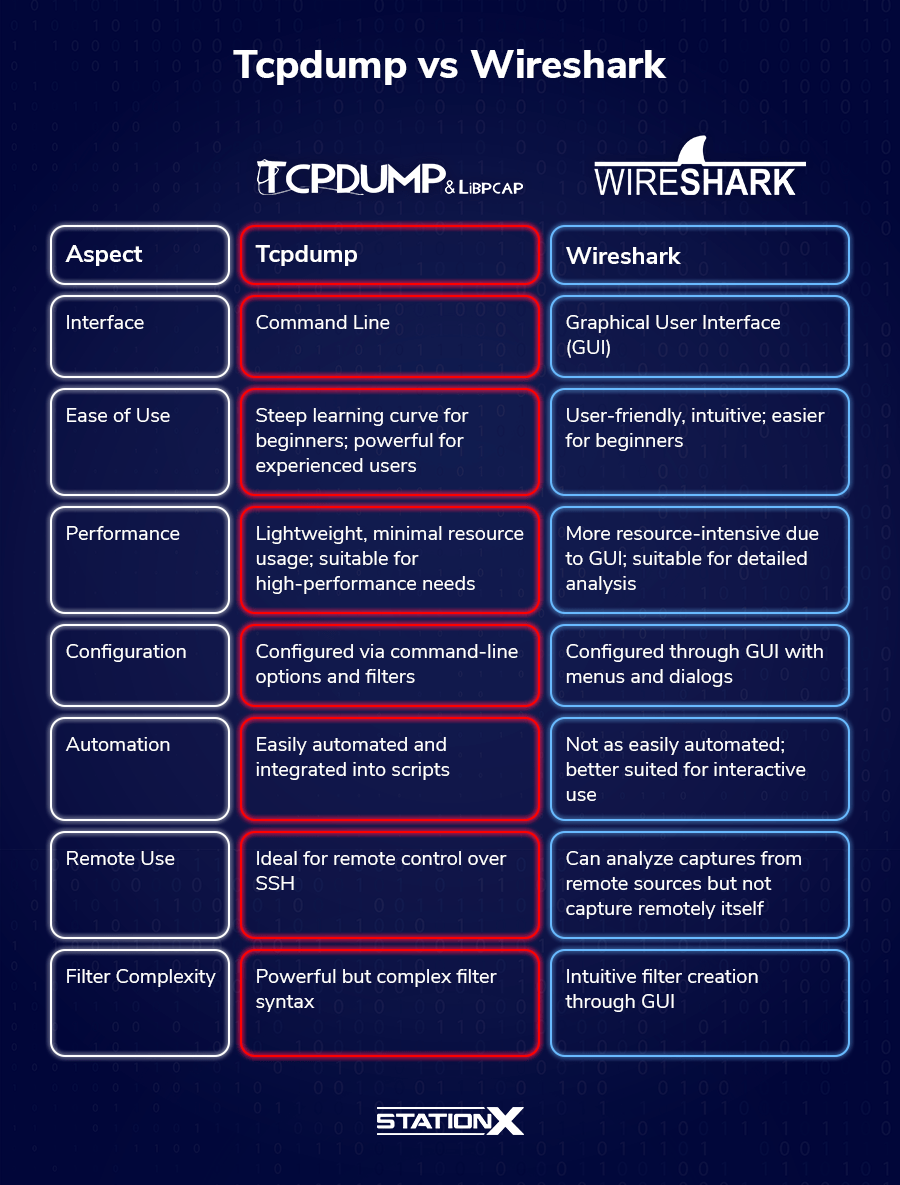

tcpdump vs Wireshark: When Should I Use These Tools?
Choosing between these powerful tools depends on your intended use or skill level. Both tcpdump and Wireshark are invaluable for network analysis, each serving a unique purpose and excelling in different scenarios.
tcpdump Examples: Use Cases
tcpdump is a wonderful tool for various networking tasks, especially if you’re comfortable working in the terminal. Its ability to diagnose issues quickly is a big plus, making it ideal for identifying networking problems or sources of network congestion.
Its lightweight nature and command-line interface allow quick packet captures, making tcpdump perfect for scripting and automation. It can also be integrated into other scripts or tasks.
It’s also ideal for situations where you don’t have access to a graphical user interface, such as connecting via ssh to a Linux or Unix server.
Its ability to apply advanced filters using the BPF syntax to capture specific traffic helps you focus on specific issues. Additionally, tcpdump is great for mapping out devices on a network and understanding their patterns.
While tcpdump offers strong capabilities, it can have a larger learning curve due to its command-line nature and extensive filter syntax. However, if you’re comfortable working in the terminal, it provides an unmatched level of control and efficiency, particularly in remote packet capturing over SSH.
Wireshark Examples: Use Cases
Wireshark is a great tool for looking at network traffic in depth if you prefer graphical interfaces. It breaks down the OSI model’s layers, helping you find and fix network problems such as slowdowns and security issues.
Its ability to follow streams enables you to reconstruct and analyze complete data exchanges between network nodes. Plus, the tool supports many network protocols, offering a deep look into their operations and behaviors.
Wireshark's intuitive interface and softer learning curve make it more accessible to novices than tcpdump. It’s a popular tool in educational settings for demonstrating how networks work and interact with various protocols, improving students' comprehension of networking.
tcpdump and Wireshark Performance and Scalability
Next, we’ll discuss the performance and scalability of these tools.
tcpdump Performance
tcpdump is efficient because of its command-line interface and lightweight design. It uses minimal resources, making it suitable for high-performance needs. This efficiency allows tcpdump to capture high traffic without significantly impacting system performance.
Applying capture filters at the packet capture level reduces the amount of data being processed and stored, further enhancing performance. This makes tcpdump effective when your system resources are limited or quick diagnostics are necessary.
tcpdump Scalability
tcpdump scales well for large and complex network environments. It can handle large traffic volumes and capture packets on multiple interfaces simultaneously.
Its interface allows easy automation and script integration, enabling scalable monitoring and analysis solutions. This makes it ideal for both small—and large-scale environments.
Wireshark Performance
While powerful, Wireshark is more resource-intensive than tcpdump due to its graphical user interface and extensive protocol and packet analysis capabilities. Capturing and analyzing large traffic volumes can impact system performance, especially on machines with limited resources.
Wireshark Scalability
When it comes to handling large traffic volumes or long-term monitoring, Wireshark is less scalable than tcpdump. Its resource consumption is higher, and the overhead of its GUI can make it impractical for large-scale or continuous packet captures.
Nonetheless, Wireshark can import and analyze capture files generated by tcpdump or other tools, making it valuable in a scalable workflow. Wireshark's analysis features provide unmatched insights for smaller networks or specific troubleshooting tasks.
Ease of Use and Configuration of tcpdump and Wireshark
Finally, let’s compare how easy each tool is to use and the ability to configure them.
tcpdump Ease of Use
If you’re a beginner, tcpdump can present a steep learning curve. Understanding and writing capture filters, interpreting command-line output, and using its various options and filters require a solid grasp of network protocols and command-line proficiency.
tcpdump Configuration
Configuring tcpdump involves specifying capture options and filters directly in the terminal, which allows precise control over the capture process and demands familiarity with the syntax and the BPF filtering language.
Advanced users can create complex filters to capture network traffic patterns, making tcpdump an extremely powerful tool for those who can master its syntax. Plus, its lightweight nature makes it easy to configure and run on various systems.
Wireshark Ease of Use
Wireshark features a user-friendly graphical interface, making it significantly easier for beginners to get started.
Its intuitive design lets you capture and analyze network traffic with minimal setup. The GUI visualizes packets, protocol layers, and conversations, helping you quickly understand and interpret network data.
Wireshark Configuration
Configuring Wireshark is simple, with options accessible through menus and dialogs within the GUI. You can easily select network interfaces, apply filters, and customize views without dealing with complex command-line syntax.
Wireshark's features include built-in filters and visualization tools like graphs and statistics, enhancing the user experience and providing a deep look into network traffic. Also, Wireshark's ability to import and analyze capture files from other tools, like tcpdump, adds to its flexibility.
Conclusion
Choosing between tcpdump and Wireshark depends on your needs and expertise.
tcpdump is perfect for quick, command-line-based packet captures, while Wireshark offers detailed, graphical analysis. Both tools are invaluable in the right hands.
With this knowledge, you're better equipped to select the right tool for your needs.
If you want to dive deeper into the topic, networking, or cyber security, consider joining the StationX Master's Program today. You’ll have access to 30,000+ courses and labs and everything you need to succeed, such as mentors, career roadmaps, and so much more.
